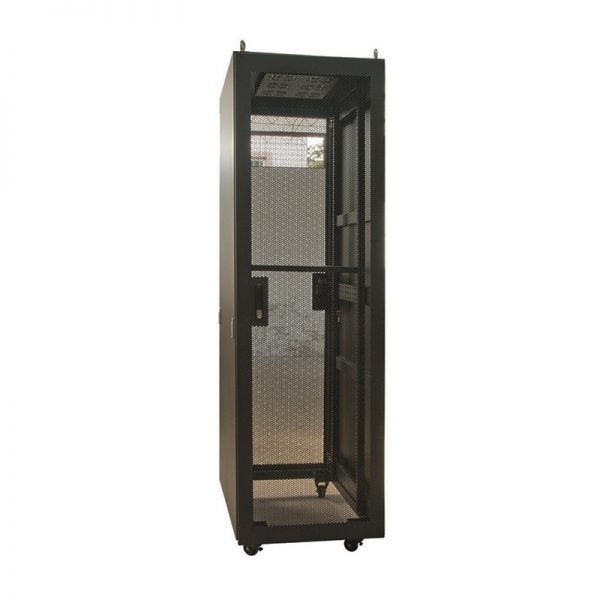

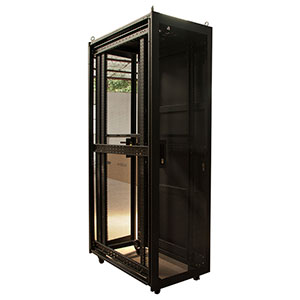

WS20 Professional Server Cabinet

Description

WS20 Professional Server Cabinet

WS20 Professional Server Cabinet Product overview：

Cloud Computing Rack

Special profiles are used to the cabinet,which offers the highest static properties and the most spacious interior space available.

According to the requirements of data centers in the communications industry, large-scale projects such as IDC and ISP have higher and higher requirements on server cabinets, especially on load-bearing, shock resistance, heat dissipation performance, stability, and security.

The professional server cabinet produced by our company is designed with special fold profile, with high static mechanical characteristics and the most spacious internal utilization space, outstanding load capacity, static load up to 1200KG, the front and rear high-density cellular mesh can reach more than 75% ventilation rate, the overall design can be used alone, but also can cooperate with cold and hot channel design, It can meet the heat dissipation requirements of some hot spots in medium – and high-end equipment rooms.

Product description

Product Model: WS20 series

Features:
● Mesh front door.

● Special profiles are used to the cabinet,which offers the highest static properties and the most spacious interior space available.

● 2 Sets of adjustable cage nut style mounting rails.

● Removable / lockable side panels.

● 19”EIA compliant.
● Top and bottom removable cable slots.

● Mesh Rear door (Double open).

● Adjustable feet and heavy duty castor available.

● U markings mounting rail.

Main material:
● SPCC cold rolled steel;

Surface finish:
● Degreasing, pickling, phosphoric, powder coated.

Color：

● Black(RAL9004)

Static loading:

● 1200KG

Product specification

Specifications
● Depth – 31.5”(800mm) / 39.4”(1000mm) /47.2”(1200mm)

● Width – 23.5”(600mm) / 31.5”(800mm)

● Rail Width – 19 inch EIA Compliant

● Height – 42U / 47U

Model No.	Size			Capacity（RU）	Remark
Model No.	Width(mm)	Depth(mm)	Height（mm）	Capacity（RU）	Remark
WS20-6842	600	800	2050	42U	* Custom-made
WS20-61042	600	1000	2050	42U
WS20-61242	600	1200	2050	42U
WS20-61047	600	1000	2260	47U
WS20-61247	600	1200	2260	47U

This cabinet can be extended to cold aisle, intelligent cabinet, and modular cabinet.
