WS05-S Wall mount swing-out rack

WS05-S Wall mount swing-out rack

Comply with:
● ANSI/EIA RS-310-D
● IEC297-2
● DIN41494
● ETSI standard
● GB/T3047.2- 92





Description

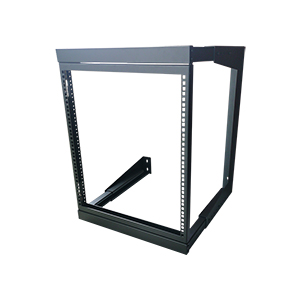

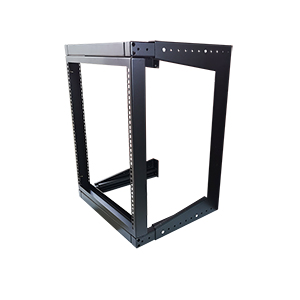

WS05-S Wall mount open swing-out rack

WS05-S Wall mount open swing-out rack Description:

It is composed of a front frame and a wall-mounted fixing assembly.

Modular structure, easy to use, with convenient installation.

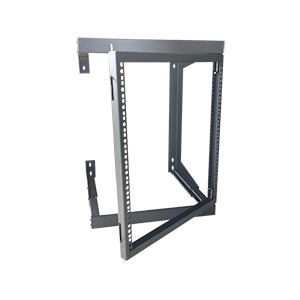

The front frame can be swing out.

Ideal for all 19 inch rack mount applications.

WS05-S Wall Mounted Open Swing-out Rack is ideal for electronics & equipment gear like AV, TV, NAS, DATA, server, internet router, amplifier, hard recorder, computer, and video game console.



Product Model:WS05-S Series

Features:

◆ Ideal for all 19 inch rack mount applications.

◆Modular structure, easy to use, with convenient installation.

◆The front frame can be swing out.

◆ Pre-tapped threaded holes on one side and square rack holes on the other.

◆ Optional accessories such as cantilever shelves and PDUs can be added.

Material:

◆SPCC cold rolled steel;

◆ Thickness: plinth: 2.0mm.

◆Degreasing, pickling, phosphoric, powder coated.

◆ Color:Black(RAL9005)。

SPEC:

Model Size Capacity(U) Remark
Width(mm) Depth(mm) Height(mm)
WS05-S-440-□ 520 400 265 4U *
WS05-S-640-□ 520 400 350 6U *
WS05-S-940-□ 520 400 490 9U *
WS05-S-1240-□ 520 400 617 12U *
Product Model Rules:

□Optional depth:0–denotes Fixed depth   1–denotes Adjustable depth

* Custom-made

Specifications and configuration are subject to change without notice.Other size can be made。

1、WS05-S Series Wall mount open swing out rack.PDF。

2、WS05-S Series Wall mount open swing out rack drawing。

3、WS05-S Series Wall mount open swing out rack Installation Diagram。
