WS08 Outdoor Waterproof Cabinet

Description

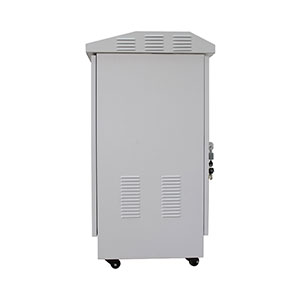

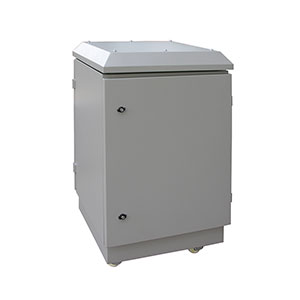

WS08 Outdoor Waterproof Cabinet

WS08 Outdoor Waterproof Cabinet Product overview：

Outdoor waterproof cabinet refers to the cabinet that is directly under the influence of natural climate and is made of metal or non-metal materials with a waterproof level of a certain level. The cabinet can house base station equipment, power supply equipment, batteries, temperature control equipment, transmission equipment and other supporting equipment, or reserve installation space and heat exchange capacity for the above equipment. Provide outdoor physical working environment and reliable security guarantee for wireless communication station or wired network station workstation. Suitable for outdoor environment, such as highway, park, roof, mountain, flat and so on.

Product description

Product Model: WS08 Series

Features:
◆ Fixed structure.

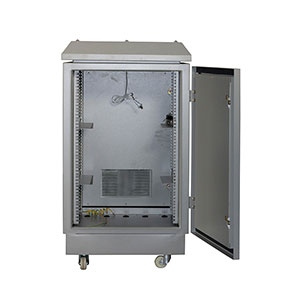

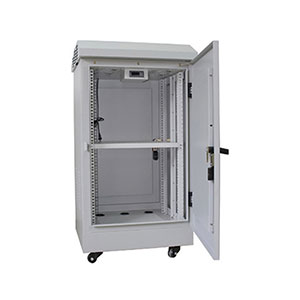

◆ Front and rear doors can be opened, with waterproof trough door, with a sealed rubber strip, close to the inside of the door, waterproof, dustproof.

◆ 2 Sets of adjustable cage nut style mounting rails.

◆ Side panels, doors and roof are double steel structure, sandwich insulation between the insulation material.

◆ 19”EIA compliant.

◆ Three-dimensional roof to prevent the accumulation of rain.

◆ Inlet and exhaust are installed with dust filter, filter can be cleaned and replaced.

◆ U markings mounting rail.

Main material:
◆ SPCC cold rolled steel.

Protection Level:

◆ IP56.

Surface finish:
◆ Degreasing, pickling, phosphoric, powder coated.

Color：

◆ Grey(RAL7035) or Black(RAL9004).

Static loading:

◆ 400KG.

Product specification

Product specification:

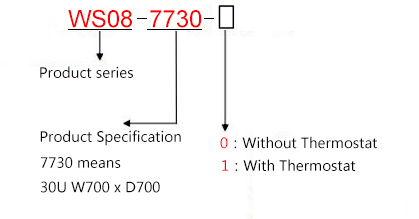

Model No.	Specifications			Capacity（U）	Remark
Model No.	Width(mm)	Depth(mm)	Height（mm）	Capacity（U）	Remark
WS08-7730-□	700	700	1800	30U	*
WS08-7725-□	700	700	1600	25U	*
WS08-7720-□	700	700	1400	20U	*
WS08-7712-□	700	700	1200	12U	*
* Specifications and configuration are subject to change without notice.Other size can be made.
