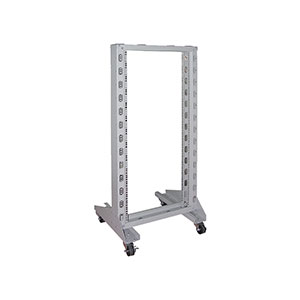

WS05-A Open Frame Rack

Description

WS05-A Open Frame Rack

WS05-A Open Frame Rack Product description：

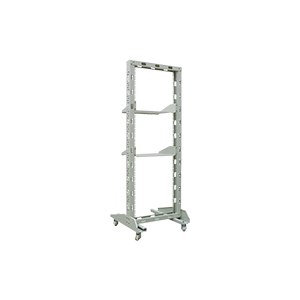

Include open floor type and wall hanging type. Floor type frame combined structure, simple, light and easy to use, easy installation. Both sides of the column can accommodate cables. Optional cantilever laminate.

Folding is more flexible, suitable for more limited scenarios, both vertical and horizontal installation of equipment, while folding packaging to save volume.

Product description

Product Model: WS05-A Series

Feautures:

◆ Superior design for complex cable management.

◆ Ideal for all 19 inch rackmount.

◆ On both sides of the frame can accommodate cables.

◆ Conducts by cable clamps can be mountable on all faces.

◆ Base openings ready for individual positioning of the frame.

◆ Flat pack delivery available.

◆ Can be bayed together.

Main material:
◆ SPCC cold rolled steel;
◆ Thickness: plinth: 1.8mm; Front and bottom beams：2.0mm.

Surface finish:
◆ Degreasing, pickling, phosphoric, powder coated.

Color:

◆ Black(RAL9005) or Gray(RAL7035).

Loading capacity:
◆ Static loading: 400KG.

Product specification

Product specification:

Model No.	Specifications			Capacity（U）	Remark
Model No.	Width(mm)	Depth(mm)	Height（mm）	Capacity（U）	Remark

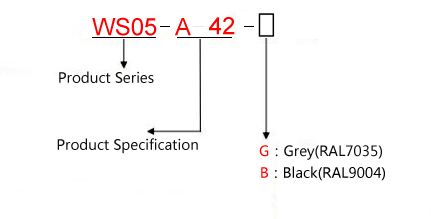

WS05-A-45-□	600	120	2200	45U	*
WS05-A-42-□	600	120	2000	42U	*
WS05-A-36-□	600	120	1800	36U	*
WS05-A-26-□	600	120	1300	26U	*
* Custom-made
Specifications and configuration are subject to change without notice.Other size can be made。
