Wall Mount Open Frame Network Rack

Description

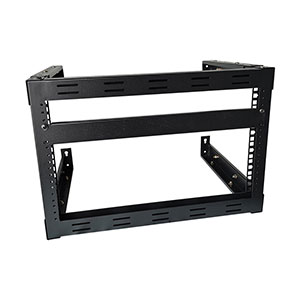

WS05-F Wall Mounted Open Frame Rack

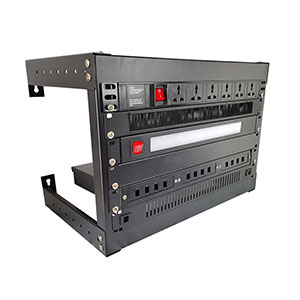

WS05-F Wall Mounted Open Frame Rack is ideal for electronics & equipment gear like AV, TV, NAS, DATA, server, internet router, amplifier, hard recorder, computer, and video game console.

Product description

Product model: WS05-F series

Feautures:

● Ideal for all 19 inch rack mount applications.

● Mounted to the wall, this rack offers fast and easy access to network components and cabling.

● Flat packaging and reduce volume.

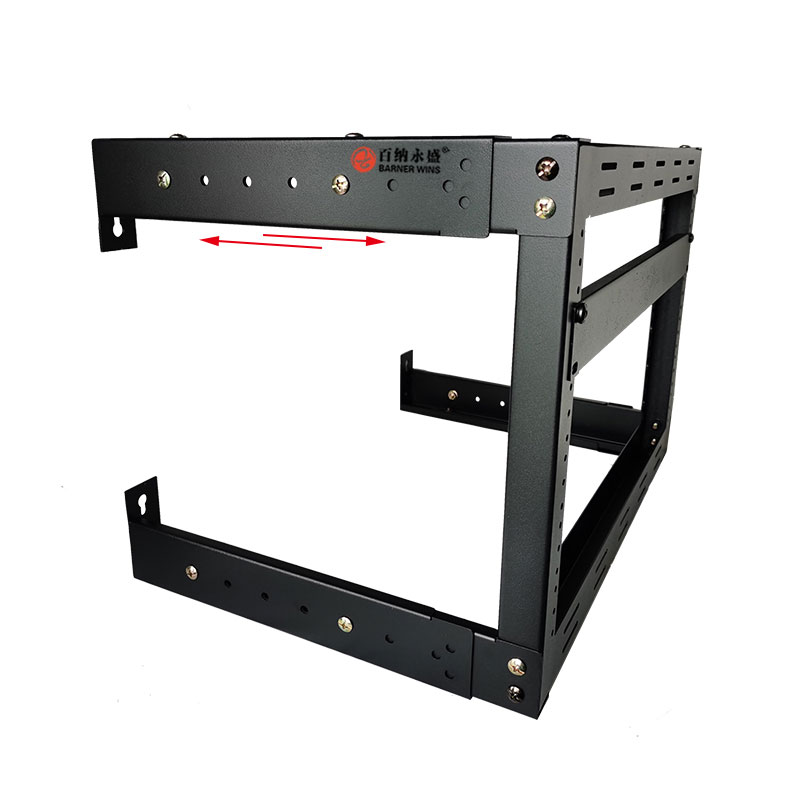

● Expandable depth.

● Pre-tapped threaded holes on one side and square rack holes on the other.

Material:

● SPCC cold rolled steel;
● Thickness: plinth: 1.5 ~ 2.0mm.

Surface finish:
●Degreasing, pickling, phosphoric, powder coated.

Color：Black

Loading capacity:
●Static loading: 40KG

Product specification

Spec:

Model No.	Specifications			Capacity（U）	Remark
Model No.	Width(mm)	Depth(mm)	Height（mm）	Capacity（U）	Remark
WS05-F-430-□	520	320-500	265	4U	*
WS05-F-630-□	520	320-500	350	6U	*
WS05-F-930-□	520	320-500	490	9U	*
WS05-F-1230-□	520	320-500	617	12U	*
when □ is “1” that the Depth adjustable. * Custom-made Specifications and configuration are subject to change without notice.Other size can be made。
