WS06 Cabinet Accessories

Description

WS06 Cabinet Accessories Product overview:

Cabinet Accerrories Including rack light, shelves, blank plate, fans, casters, feet, screws, PDUs,cabinet lock, cable management, keyboard tray etc..

Product Model: WS06 Series

Main material:
◆ SPCC cold rolled steel;

Surface finish:
◆ Degreasing, pickling, phosphoric, powder coated.

Color:

◆ Black(RAL9005) or Gray(RAL7035).

Cabinet Accerrories:

Item	Name	Dimensions	Model No.	Photo showing	Remark

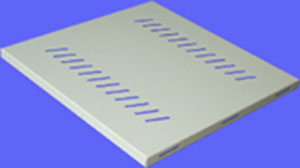

1	Fixed shelf	465X300（for 600 depth）	WS06-A-SH-30		G–RAL7035 B–RAL9004
2	Fixed Shelf	465X400（for 800 depth）	WS06-A-SH-40
3	Fixed Shelf	465X600（for 1000 depth）	WS06-A-SH-60

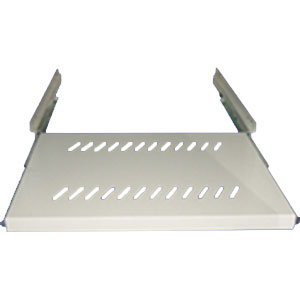

4	Sliding Shelf	465X300（for 600 depth）	WS06-A-SL-30
5	Sliding Shelf	465X500（for 800 depth）	WS06-A-SL-50
6	L bracket		WS06-A-LB-30

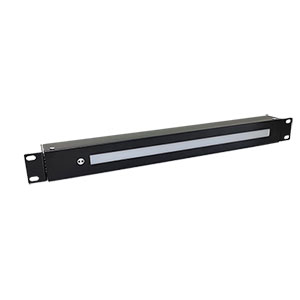

7	Lamp Unit	1U	WS06-A-LA-1
8	Cantilever Shelf	1U	WS06-A-CS-1
9	Cantilever Shelf	2U	WS06-A-CS-2

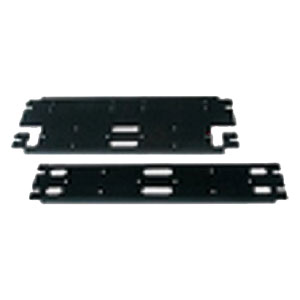

10	Install back Bracket	2U	WS06-A-B-2
11	Install back Bracket	4U	WS06-A-B-4
12	Vent Panel	1U	WS06-A-SP-1
13	Vent Panel	2U	WS06-A-SP-2

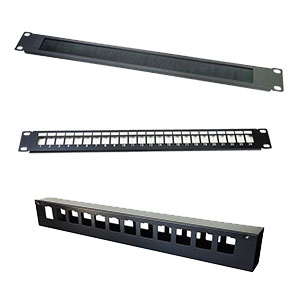

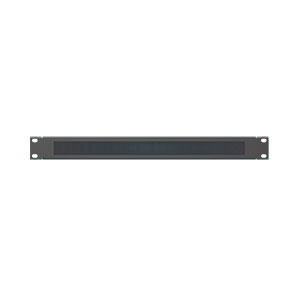

14	Brush Plate	1U	WS06-A-BP-1

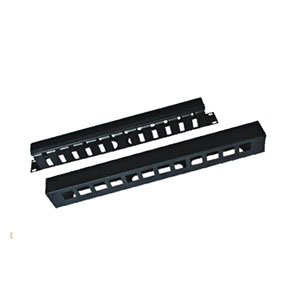

15	Cable Managerment	1U With cover	WS06-A-CM-C-1
16	Cat.5e Surface Box	1 Port	WS06-A-C5e-1

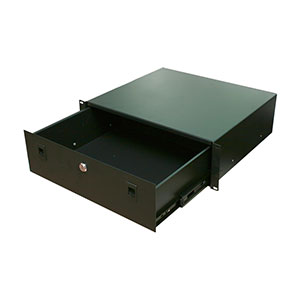

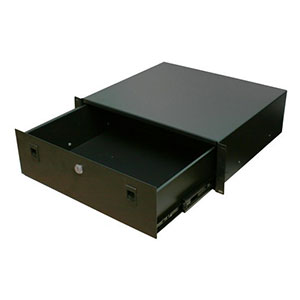

17	Locking Drawer	2U/4U	WS06-A-LD-2

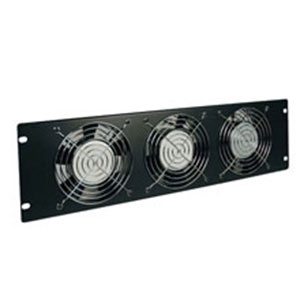

18	Fan	3 fans(465x150mm)	WS06-A-F-3

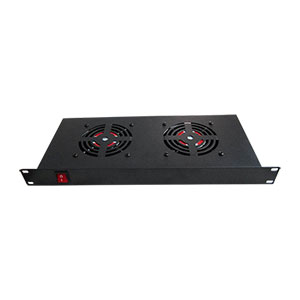

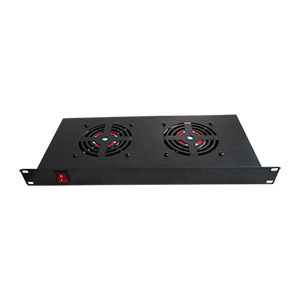

19	Cooling Fan	2 fans (465X200mm)	WS06-A-FP-2
20	Cooling Fan	4fans (465X400mm)	WS06-A-FP-4

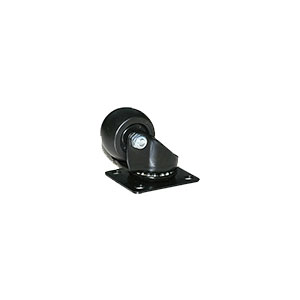

21	Caster	2” without brake	WS06-A-CA-2

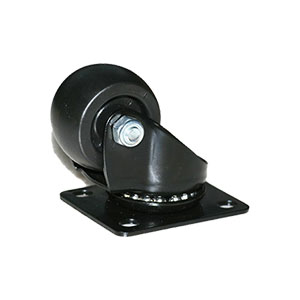

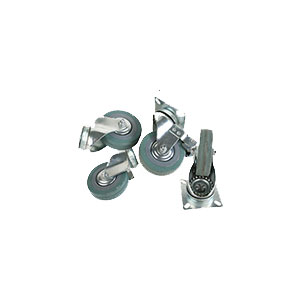

22	Wheels	3” mute	WS06-A-WH-3

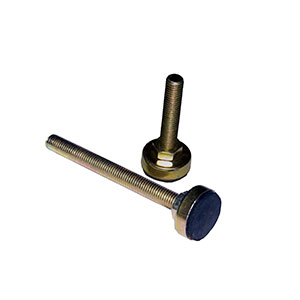

23	Adjustable Feet	M12	WS06-A-AF-12

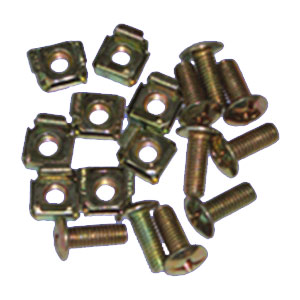

24	Cage Nuts	M6 X 16mm	WS06-A-MS-6

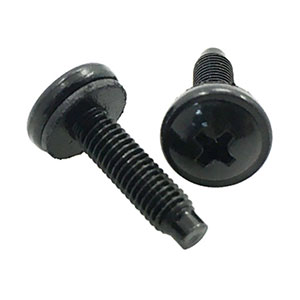

25	Screws	3/16” X 3/4″	WS06-A-ES-3/16
26	Plastic cable management ring		WS06-A-CR-10
27	Cabinet lock	Spring lock	WS06-A-LC-1
28	Cabinet lock	Small round lock	WS06-A-LC-0

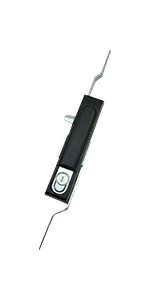

29	Cabinet lock	Connecting rod lock	WS06-A-LC-2
30	Ground lead		WS06-A-GL-0

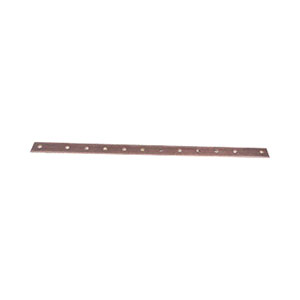

31	Ground strap	Cuprum /19”	WS06-A-GL-1

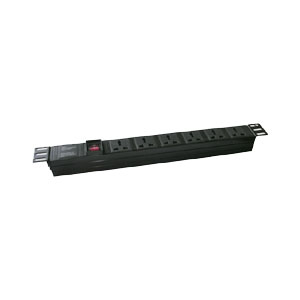

32	PDU	1U/5port	WS06-A-PDU1-5
33	PDU	1U/6port	WS06-A-PDU1-6
