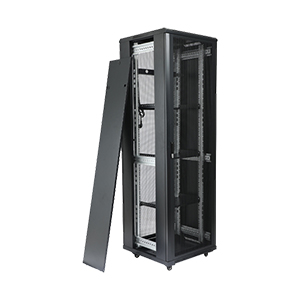

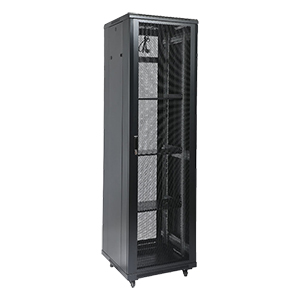

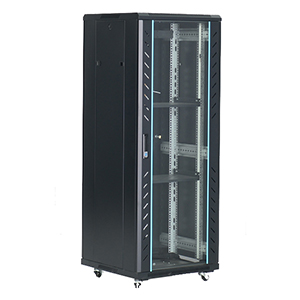

WS04 Floor Standing Rack

Description

WS04 Floor Standing Rack Product description：

It’s a 19-inch standard floor standing rack with reinforced toughened glass doors or high-density mesh door. it is flat package and cost-effective.

Product Model: WS04 Series

Features:
◆ Assembled structure.

◆ Toughened glass front door or mesh door.

◆ 4 pieces of adjustable cage nut style mounting rails.

◆ Removable side panels.

◆ Ideal for all 19 inch rackmount.

◆ Top and bottom removable cable slots.

◆ Adjustable feet and heavy duty castor available.

◆ U markings mounting rail.

Main material:
◆ SPCC cold rolled steel;

Surface finish:
◆ Degreasing, pickling, phosphoric, powder coated.

Color：

◆ Black(RAL9004)

Static loading:

◆ 800KG

Product specification：

Model No.	Specification			Capacity（U）
Model No.	Width(mm)	Depth(mm)	Height（mm）	Capacity（U）
WS04-6618-□□	600	600	970	18U
WS04-6622-□□	600	600	1150	22U
WS04-6822-□□	600	800	1150	22U
WS04-6627-□□	600	600	1420	27U
WS04-6827-□□	600	800	1420	27U
WS04-6632-□□	600	600	1590	32U
WS04-6832-□□	600	800	1590	32U
WS04-6637-□□	600	600	1820	37U
WS04-6837-□□	600	800	1820	37U
WS04-6642-□□	600	600	2040	42U
WS04-6842-□□	600	800	2040	42U
WS04-61042-□□	600	1000	2040	42U
WS04-8642-□□	800	600	2040	42U
WS04-8842-□□	800	800	2040	42U





Remark: First □ “1” denotes glass door, first □ “2” denotes mesh door, second □ “1” denotes Black color, second □ “2” denotes Gray color. Specifications and configuration are subject to change without notice.
