Description
WS03-B Wall mounted Open Rack
WS03-B Wall mounted Open Rack Product Specifications：
This wall-mounted open rack, also known as a U-shaped rack, is an ideal choice for simple cabling due to its low cost, simple structure, and easy installation.
This rack comes in a variety of extensions:：

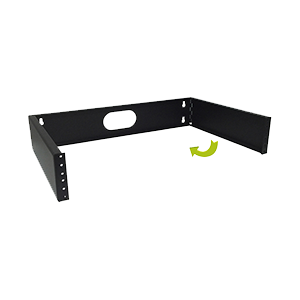

◆ One-side hinge design for easy equipment installation and maintenance.
◆ Adjustable depth at both sides to meet various installation requirements.
◆ Combined installation at both sides reduces storage space and saves transportation costs.
Product Model：WS03-A1 Series，WS03-A3 Series，WS03-B Series，WS03-E Series
Feautures：
◆ Ideal for all 19 “rack applications.
◆ Low cost, easy to install.
◆ Multiple modes available to meet more needs (one end movable, both ends telescopic, both ends detachable, etc.).
Main material：
◆ SPCC cold rolled steel.
◆ Surface finish: Degreasing, Phosphoric ,Powder coat.
◆ Color：Black.

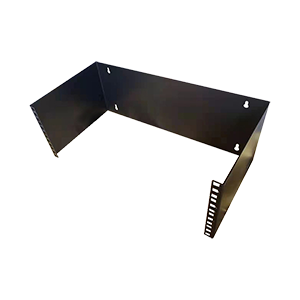

WS03-A1 Series Product specification:
| Model No. | Specification | Capacity（U） | Remark | ||
| Width(mm) | Depth(mm) | Height（mm） | |||
| WS03-A1-□-8 | 485 | 240 | 360 | 8U | * |
| WS03-A1-□-6 | 485 | 240 | 270 | 6U | * |
| WS03-A1-□-4 | 485 | 240 | 180 | 4U | * |
| WS03-A1-□-2 | 485 | 240 | 90 | 2U | * |
”□“ denotes depth，The default depth is 240mm, other depths need to be indicated when ordering. | |||||
| * Specifications and configuration are subject to change without notice.Other size can be made. | |||||

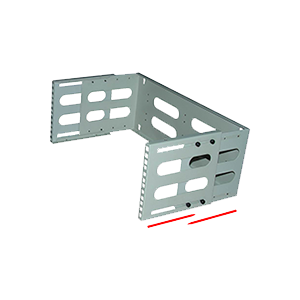

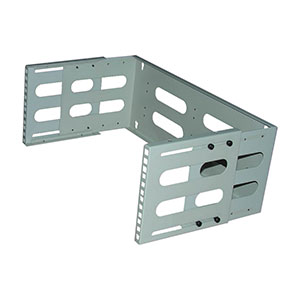

WS03-A3 Series Product specification:
| Model No. | specification: | Capacity（U） | Remark | ||
| Width(mm) | Depth(mm) | Height(mm） | |||
| WS03-A3-□-8 | 490 | 280 | 360 | 8U | * |
| WS03-A3-□-6 | 490 | 280 | 270 | 6U | * |
| WS03-A3-□-4 | 490 | 280 | 180 | 4U | * |
| WS03-A3-□-2 | 490 | 280 | 90 | 2U | * |
| ”□“ denotes depth，The default depth is 280mm, other depths need to be indicated when ordering (Maximum safe depth is 450mm). | |||||
| * Specifications and configuration are subject to change without notice.Other size can be made. | |||||

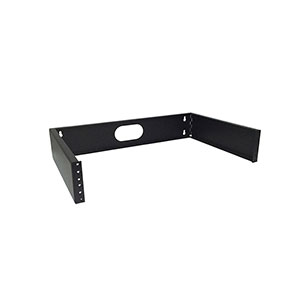

WS03-B Series Product specification:
| Model No. | Specification | Capacity（U） | Remark | ||||||||
| Width(mm) | Depth(mm) | Height（mm） | |||||||||
| WS03-B-□-8 | 490 | 260 | 360 | 8U | * | ||||||
| WS03-B-□-6 | 490 | 260 | 270 | 6U | * | ||||||
| WS03-B-□-4 | 490 | 260 | 180 | 4U | * | ||||||
| WS03-B-□-2 | 490 | 260 | 90 | 2U | * | ||||||
”□“ denotes depth，The default depth is 260mm, other depths need to be indicated when ordering .
| |||||||||||
