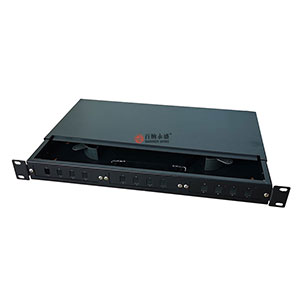

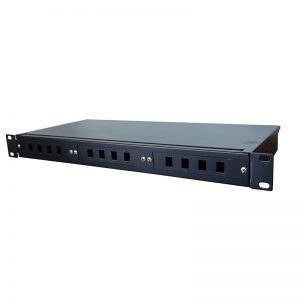

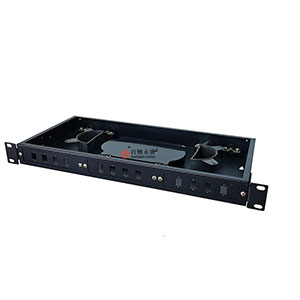

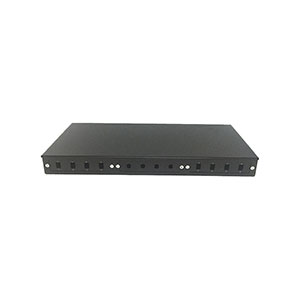

WS02-D3 Optical Fiber Distribution Panel

Description

WS02-D3 Optical Fiber Distribution Panel

WS02-D3 Optical Fiber Distribution Panel (ODF) Product overview：

Optical fiber terminal box / Fiber optic cable box / Fiber patch panel / Cable connection box / Fiber storage box / Optical fiber distribution frame

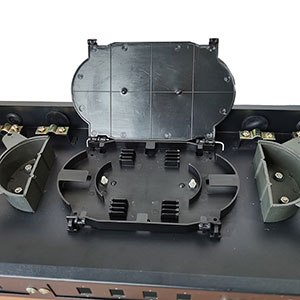

Optical fiber distribution frame is also called cable tray fiber box, cable connection box, optical fiber reception box. It is mainly used for fixing optical cable terminals, providing optical fiber and optical fiber fusion, fiber and pigtail fusion and optical connector transfer, which is equivalent to dividing a cable into a single optical fiber equipment, is in the cable laying terminal protection cable and pigtail fusion box, mainly used for indoor cable through force connection and branch connection and cable terminal fixation, Tail fiber disk storage and protection of the joint.

Product description

Product Model : WS02-D3 Series

Features:
◆ Small dimensions and convenient operation.

◆ Multiple patterns and configuration.

◆ With adequate storage and distribution space.

◆ With safe and reliable fiber cable fastening.

◆ Easy to patching, splicing and managing.

◆ Available for rack mount or wall mount.

◆ Applicable to adapters such as FC/SC/ST.

Main material:
◆ SPCC cold rolled steel.

Surface finish:
◆ Degreasing, Phosphoric ,Powder coat.

Color：

◆ Black(RAL9004).

Product specification

Product specification:

Specification
Model No.	Capacity(PORT)	Width(mm)	Depth(mm)	Height（mm）	Packing Size （WDHmm）	Remark
WS02-D3-□□	SC/12	465	200	45	470x220x55	1U
WS02-D3-□□	SC/24	465	200	45	470x220x55	1U
WS02-D3-□□	SC/36	465	200	90	470x220x110	2U
WS02-D3-□□	SC/48	465	200	90	470x220x110	2U

* Custom-made。 Specifications and configuration are subject to change without notice.Other size can be made。
