WS02-D1 Optical Fiber Distribution Box

Description

WS02-D1 Optical Fiber Distribution Box

WS02-D1 Optical Fiber Distribution Box Product overview：

Optical fiber distribution frame is also called cable tray fiber box, cable connection box, optical fiber reception box. It is mainly used for fixing optical cable terminals, providing optical fiber and optical fiber fusion, fiber and pigtail fusion and optical connector transfer, which is equivalent to dividing a cable into a single optical fiber equipment, is in the cable laying terminal protection cable and pigtail fusion box, mainly used for indoor cable through force connection and branch connection and cable terminal fixation, Tail fiber disk storage and protection of the joint.

Product description

Product Model：WS02-D1Series

Features：

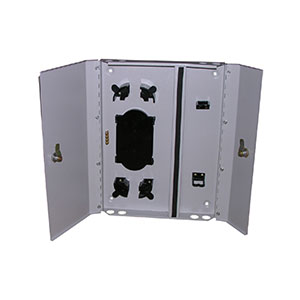

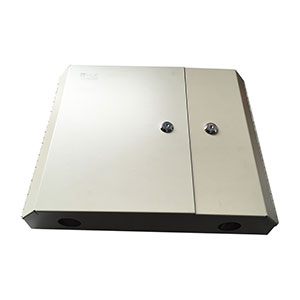

◆ Double door design, can be separated operation to ensure safety.
◆ One box with two bodies, one for optical fiber fusion and the other for jumper connection.

◆ The upper and lower parts are provided with cable holes for flexible cable routing.

◆ There is a Fusible disk, set solid fiber, fiber, fiber, jumper connection in one.

◆ Coupling port panel is replaceable (ST/SC/FC,12/24).

◆ Reliable cable fixing, grounding device.

◆ With ample disk storage, cable space.

◆ Main material: SPCC cold rolled steel.

◆ Surface finish: Degreasing, Phosphoric ,Powder coat.

◆ Color：Black（RAL9004）or Gray（RAL7035）。

Product specification

Product specification：

Optical Fiber Distribution Box

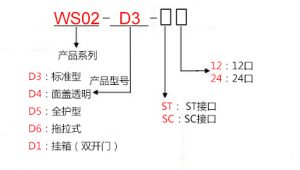

Model No.	Capacity(PORT)	Width(mm)	Depth(mm)	Height（mm）	Packing Size（WDHmm）	Remark
WS02-D1-□□	12/ST	380	75	330	400x80x350
WS02-D1-□□	12/SC	380	75	330	400x80x350	*
WS02-D1-□□	24/ST	380	75	330	400x80x350	*
WS02-D1-□□	24/SC	380	75	330	400x80x350	*

* Specifications and configuration are subject to change without notice.Other size can be made。
