Intelligent Cabinet Solutions
The intelligent cabinet is a set of modern intelligent cabinet system based on the micro-environment concept under the Internet of Things mode. It aims to simplify the planning and design of the computer room and rapid deployment, optimize the space, and realize the standardization, modularization, intelligence, safety, energy saving and environmental protection of the data center. Based on the actual environment of the cabinet, such as the temperature and humidity, fire control, power supply, and security environment, intelligent control is provided to implement intelligent heat dissipation, lighting, access control, alarm, and remote management of the cabinet. It is an important symbol of equipment room modernization and technological progress to improve the operating efficiency and reliability of equipment and realize real-time monitoring of the equipment room environment with the minimum maintenance personnel and the optimal operation and maintenance method.
Functions
Electric quantity monitoring
Monitoring object: Monitors the power supply and distribution in a cabinet in real time.
Monitoring implementation: Connect the power supply line for the cabinet to the intelligent acquisition unit of the cabinet micro-environment monitoring workstation. In this way, the host can monitor the current and voltage of the power supply in real time.
Monitoring contents: Real-time monitoring of the current and voltage in the cabinet.
Temperature and humidity monitoring
Monitoring objects: Monitors the temperature and humidity of key areas in the cabinet in real time.
Monitoring implementation: Connect the RS485 signal cable of the T/H sensor to the serial port of the cabinet microenvironment monitoring workstation. The device can set an address code.
Monitoring content: Displays real-time temperature and humidity changes at the location of the T/H sensor.
Fire control monitoring
Monitoring object: Monitors the smoke inside the cabinet.
Monitoring implementation: A smoke sensor is arranged on the cabinet and connected to the intelligent acquisition unit of the cabinet microenvironment monitoring station through an RS485 signal cable. When a fire alarm occurs in the equipment room, the system will immediately alarm and notify the equipment room management personnel.
Monitoring content: Monitor the smoke alarm status of each area.
Security (access control) system
Monitoring the image: implement the switch in and out management of the cabinet door.
Monitoring implementation: Matching the integrated cabinet intelligent lock (equivalent to the access card reader with the password and the second-generation ID card function), plays the role of a single-door controller, and connects it to the interface of the intelligent acquisition unit of the cabinet micro-environment monitoring workstation to monitor the status of the current door.
Monitoring:
Can be connected to the door lock power supply and door magnetic alarm;
Open the door button;
It can adopt the time-sharing open-door management mode;
The administrator password can be used to open the door, swipe the card to open the door, card and password to open the door management mode;
The staff on duty can remotely control the door opening for the relevant personnel;
When the power is off, the door is locked;
Under special circumstances, the super administrator can open the door with the key;
Swipe card information data can be saved locally and uploaded timely;
The upper computer can be called at any time to save data on site;
With illegal door opening, coercive password to open the door and open the door for a long time alarm function;
When alarm occurs, sound and light alarms will be issued on site and uploaded to the management center.

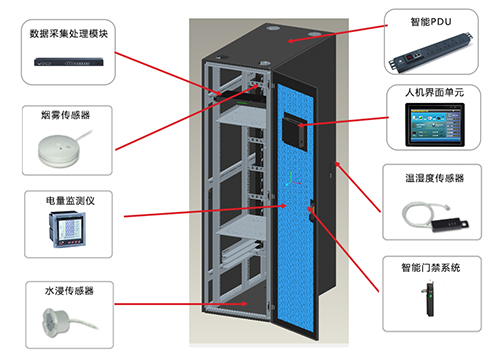

Functions:
The touch screen display unit makes the man-machine interface more intuitive.
Temperature and humidity detection: Monitor the temperature and humidity inside the cabinet.
Temperature sensor access, can provide temperature control equipment control.
Power supply test and power supply security policy: test display voltage/current/power, etc.
The front and rear cabinet doors are opened intelligently, and the electronic access control system sets the permission of the administrator.
Smoke, water and other alarm function.
LED cabinet lighting system.

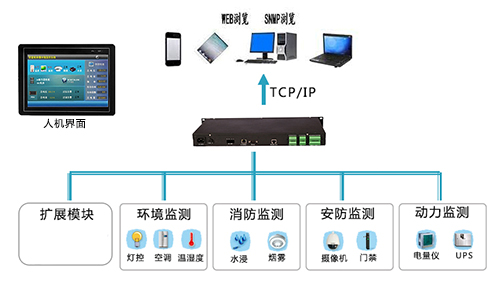

Embedded microprocessor module design, with RS485 interface, can achieve local and remote management.
Module function expansion and complete module types, so that the choice of diversification.
