Integrated Cabinet Lock Built-in Bluetooth
The integrated Bluetooth APP access control cabinet lock is the latest high-tech innovative product developed on the basis of ordinary cabinet lock and card reading lock. It integrates the “Bluetooth module”, “access control” and so on into the lock body of the “cabinet lock”, making it “integrated” and convenient for installation and debugging; And combined with RS485 network communication, composed of intelligent and safe “in and out” control system, with network connection security, monitoring functions, widely used in a variety of outdoor, indoor medium and large intelligent telecom cabinets and other places requiring real-time monitoring, it uses electronic intelligent control, smart phone Bluetooth APP unlock, multiple functions, safe and reliable.
| Size of lock body | 174MM X 44MM X 60MM ±5％ |
| Size of opening | 160X30MM |
| Net weight of lock body | 0.9Kg±5％ |
| Color | Black |
| Rated operating voltage | 12VDC |
| Input voltage range | 10.8VDC－13.2VDC |
| Working current | The value is smaller than 150mA in static standby mode and 500mA in dynamic unlock mode. |
| Minimum supply current | 1000mA／12VDC input |
| Bluetooth Specification | Both Bluetooth 4.0 and Bluetooth BT2.1+EDR are supported |
| Operating system | Support includes iOS(Apple), Android (Android), and Windows (Microsoft). |
| Radio frequency performance | Emission sensitivity 10dBm; Receiving sensitivity -80dBm; |
| State of operation | No light is on in normal standby mode. The blue light blinks once when opening the door legally and the red light blinks when opening the door illegally. |
| Special parameters | |
| Service life | More than 350,000 times |
| Means of communication | RS485，9600bit/s(default) |
| Mode of unlocking | Electronic control (remote command unlock, mobile phone APP Bluetooth unlock) and mechanical key open, close the door automatically locked. |
Product Functions
Door Control Function
Door control authorization, up to 65536 users;
Software authorization: Authorized by the system software through network communication (software authorization is recommended);
Event records, a maximum of 65536 historical records, more than 65536 will cover the earliest stored historical records;
RS485 network real-time monitoring, door status, handle status, real clock function;
Time management function; The communication protocol and encryption mode can be customized.
Emergency mechanical key unlocking function (using the industry interopening rate of very low computer key lock core to ensure safety).
Mode of opening

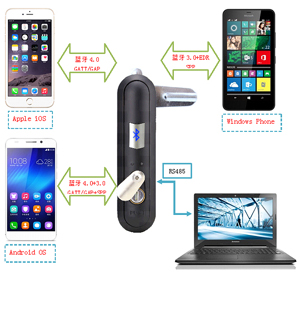

There are two ways to unlock the phone APP
1) Log in the mobile app, search for Bluetooth devices, and send device information to the cloud platform. After the platform passes the review, it sends the open door instruction to the mobile terminal. After receiving the open door instruction, the mobile phone sends the open door instruction to the Bluetooth lock to perform the open door action;
2) Send the permission to open the door to the mobile phone in advance, log in the app, search the Bluetooth device, and manually send the door opening instruction to unlock the lock.
Remote command unlock;
A mechanical key opens the lock.
RS485 communication
Use the RS485 communication mode to communicate with the back-end PC. The default communication rate is 9600BPS, and the default communication ID is 1. You can modify the ID using the debugging tool.
Note: If you forget the device ID, you can use the universal device ID 0 to connect to the device and change its communication address.
